Name: California Electric Transmission Lines

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

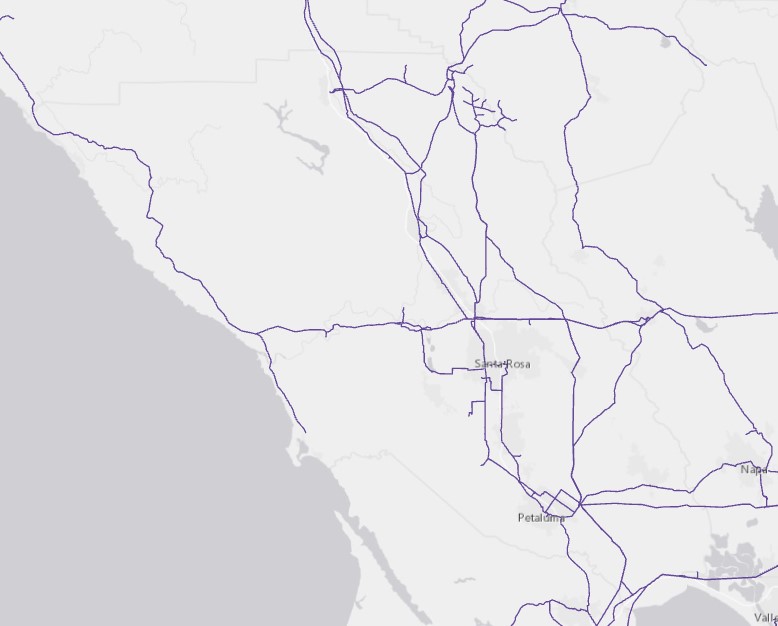

Description: The California Energy Commission (CEC) Electric Transmission Line geospatial data layer has been created to display the electric transmission grid in California. When used in association with the CEC Power Plant and CEC Electric Substation geospatial data layers, viewers can analyze the geographic relationships with the electric transmission grids across utilities, counties and state. The transmission line data, as one of the CEC's critical infrastructure spatial data will be used to: 1. Support the CEC/STEP/Strategic Transmission Planning and Corridor Designation Office in corridor study and transmission line siting; 2. Support the CEC staffs various analysis by providing general geographic reference information; 3. Enhance communication between and among government agencies on emergency management, resource management, economic development, and environmental study; 4. Provide illustration of critical infrastructure spatial data to the public or other agencies in hard copy format. Data Dictionary:Object ID: a unique, not null integer field used to uniquely identify rows in tables in a geodatabase.Name: abbreviated transmission line owner and transmission line capacity in kilovolts (kV).kV: transmission line capacity in kilovolts (kV), data structure is a text string.kV (Sort): transmission line capacity in kilovolts (kV), data structure is a numeric double.Owner: abbreviated transmission line owner name.Status - last reported operational, proposed, closed, or unknown status of the transmission line.Circuit - notes if the transmission line segment is a Single, double, or triple circuit. Null values are unknown. Type - OH is overhead transmission lines, UG is underground, UW is underwater, null values are unknown.Legend - a summarized categories of transmission line owner and transmission capacity value in kilowatts (kV) for map legend purposes.Length (Mile) - the length of the transmission line segment in miles.Length (Feet) - the length of the transmission line segment in feet.TLine Name - the name of the transmission line segment reported to the California Energy CommissionSource - the data source used by California Energy Commission.CommentsCreatorCreator DateLast EditorLast Editor DateGlobalIDShape__LengthShape

Copyright Text: California Energy Commission - GIS Unit

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 5947760.494042635
YMin: -194310.37942568958
XMax: 9303618.061185464
YMax: 3248822.3363292217
Spatial Reference: 102642  (2226)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [63, 39, 150, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Name ( type: esriFieldTypeString, alias: Name, length: 50 )
• kV ( type: esriFieldTypeString, alias: kV, length: 50 )
• kV_Sort ( type: esriFieldTypeDouble, alias: kV (Sort) )
• Owner ( type: esriFieldTypeString, alias: Owner, length: 50 )
• Status ( type: esriFieldTypeString, alias: Status, length: 20 )
• Circuit ( type: esriFieldTypeString, alias: Circuit, length: 50 )
• Type ( type: esriFieldTypeString, alias: Type, length: 50 )
• Legend ( type: esriFieldTypeString, alias: Legend, length: 100 )
• Length_Mile ( type: esriFieldTypeDouble, alias: Length (Mile) )
• Length_Feet ( type: esriFieldTypeString, alias: Length (Feet), length: 50 )
• TLine_Name ( type: esriFieldTypeString, alias: TLine Name, length: 120 )
• Source ( type: esriFieldTypeString, alias: Source, length: 50 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 100 )
• Creator ( type: esriFieldTypeString, alias: Creator, length: 50 )
• Creator_Date ( type: esriFieldTypeDate, alias: Creator Date, length: 8 )
• Last_Editor ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• Last_Editor_Date ( type: esriFieldTypeDate, alias: Last Editor Date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
