Name: All Signage

Display Field: RoadName

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: Point layer containing signage assets owned and maintained by the Department of Transportation and Public Works, County of Sonoma. Primary data source of sign inventory is a table in Lucity (non-spatial database). This table is linked from the Lucity server and made available in our database as a view. This process reads the Road ID and postmile entries of each sign, and produces a feature class of points. Data includes location of sign (road name, road id, postmile, street side, sign direction, latitude/longitude, and x/y), content of sign (caption, MUTCD (Manual on Uniform Traffic Control Devices) code, and sign type), sign structure (position on post, post type, width, and offset).

Copyright Text: The Department of Transportation and Public Works, County of Sonoma is the owner, originator of this data; the County of Sonoma, ISD-GIS Central is the publisher, custodian of this data. You must source attribution “County of Sonoma” when displaying this data (see “Use Limitations” below).

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6153275.313292883
YMin: 1811403.1316381667
XMax: 6456793.685819009
YMax: 2073859.376031084
Spatial Reference: 102642  (2226)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [133, 0, 11, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SV_ID ( type: esriFieldTypeInteger, alias: SV_ID )
• RoadName ( type: esriFieldTypeString, alias: RoadName, length: 60 )
• RoadID ( type: esriFieldTypeString, alias: RoadID, length: 20 )
• PostMile ( type: esriFieldTypeDouble, alias: PostMile )
• Caption ( type: esriFieldTypeString, alias: Caption, length: 255 )
• MUTCD ( type: esriFieldTypeString, alias: MUTCD, length: 35 )
• PositionOnPost ( type: esriFieldTypeString, alias: PositionOnPost, length: 25 )
• PostType ( type: esriFieldTypeString, alias: PostType, length: 25 )
• StreetSide ( type: esriFieldTypeString, alias: StreetSide, length: 25 )
• SignDirection ( type: esriFieldTypeString, alias: SignDirection, length: 25 )
• WidthFt ( type: esriFieldTypeSmallInteger, alias: WidthFt )
• RH_ID ( type: esriFieldTypeInteger, alias: RH_ID )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• Offset ( type: esriFieldTypeSmallInteger, alias: Offset )
• SV_NUM ( type: esriFieldTypeString, alias: SV_NUM, length: 20 )
• Lat ( type: esriFieldTypeDouble, alias: Lat )
• Lon ( type: esriFieldTypeDouble, alias: Lon )
• X ( type: esriFieldTypeInteger, alias: X )
• Y ( type: esriFieldTypeInteger, alias: Y )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• SignType ( type: esriFieldTypeString, alias: SignType, length: 25 )
• SV_BKTY_CD ( type: esriFieldTypeSmallInteger, alias: SV_BKTY_CD )
• SV_SNAR_CD ( type: esriFieldTypeSmallInteger, alias: SV_SNAR_CD )
• SV_STAT_CD ( type: esriFieldTypeInteger, alias: SV_STAT_CD )
• SV_LABEL ( type: esriFieldTypeString, alias: SV_LABEL, length: 25 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

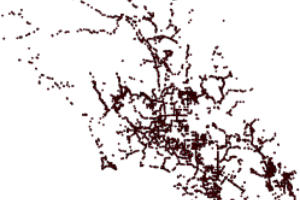

  Iteminfo   Thumbnail   Metadata
